Installing new windows is one of the best ways to improve comfort, energy efficiency, and long-term durability. Yet even the highest-rated glass and frames will fail if the installation details are overlooked. The often-invisible components that keep water and air out of your walls are the window flange and flashing system.

These two parts form the critical weather barrier around each window opening. When they are installed correctly, they protect your home from moisture, drafts, and structural damage. According to the Whole Building Design Guide, effective flashing and drainage are the primary defense against long-term water intrusion in exterior walls. When done poorly, they allow leaks, rot, and energy loss. This guide explains what flanges and flashing do, how they work together, and what steps beginners can take to achieve a secure, weather-tight installation.

The Role of Flanges and Flashing in Window Installation

New-construction windows are designed to integrate with the wall system of your home, forming a complete envelope against wind and rain. The flange and flashing are the two pieces that make this possible.

• Window Flanges: A flange (sometimes called a nailing fin) is the thin, flat edge surrounding the window frame. It allows installers to attach the window directly to the wall sheathing before siding or cladding is applied. The flange acts as both a structural anchor and a seal, creating the foundation for the waterproofing layers that follow.

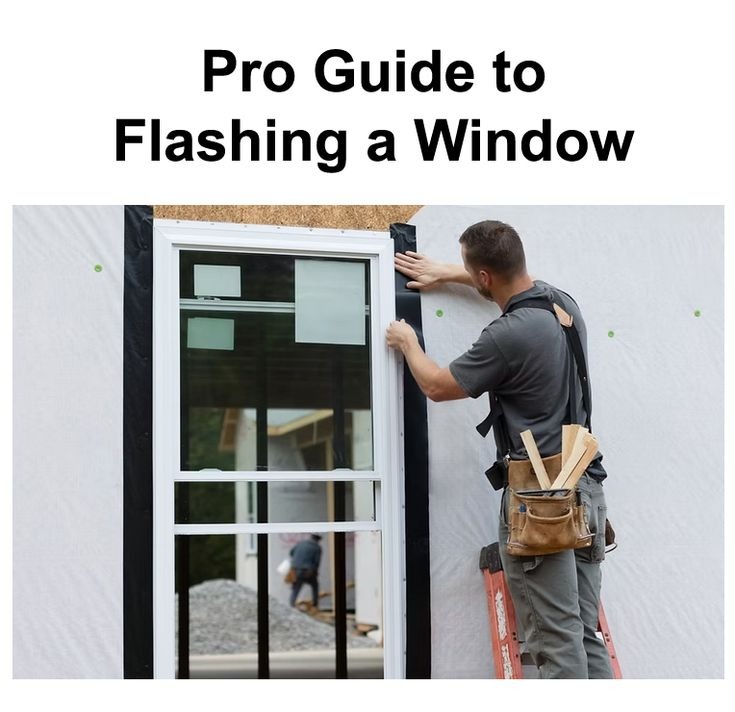

• Window Flashing: Flashing is a self-adhesive, waterproof membrane applied over and around the flange. It seals the seams between the window frame and the wall’s weather-resistant barrier (WRB), commonly known as house wrap. Its purpose is simple but vital: to channel any water that seeps behind the siding safely downward and out of the wall.

Together, these components integrate the window into the home’s moisture-control system, preventing hidden leaks and extending the life of both the window and the wall.

Why Proper Flanges and Flashing Matter

In Canadian weather, windows face constant expansion, contraction, wind pressure, and driven rain. Flanges and flashing determine whether your new windows stand up to these forces.

1. Water Management: Even the best siding is not fully waterproof. Rain can slip behind exterior finishes and collect where the wall meets the window. Flashing directs this water away from the opening, ensuring it flows harmlessly down and out rather than into framing cavities. Canadian building code appeals have repeatedly emphasized correct flashing overlap as essential for code compliance (Learn more about this at the Government of British Columbia).
2. Energy Efficiency: A window’s U-factor or ENERGY STAR rating only matters if the frame is sealed to the wall. Flanges and flashing create an airtight connection that prevents cold drafts and air leakage, improving indoor comfort and reducing heat loss.
3. Long-Term Durability: Correct installation keeps water away from framing and insulation, protecting the structural integrity of your home. Done properly, this system can last the full lifespan of the window unit – 20 to 30 years or more – with minimal maintenance.

Comparing Flashing Tape Options

Choosing the right flashing tape is important. The tape must adhere strongly in cold weather, resist UV exposure, and remain flexible for decades. Below is a comparison of the three most common types.

Parameter	Modified Bitumen (Asphalt)	Butyl	Acrylic (Vapor-Permeable)
Cold-Weather Adhesion	Fair to Poor – may stiffen in low temperatures	Excellent – remains flexible and sticky	Very Good.
Self-Sealing Around Nails	Good – tacky, but less durable	Excellent – creates a watertight bond	Good, limited
UV Resistance (if exposed)	Poor – must be covered quickly	Good – more stable than bitumen	Excellent – most UV stable
Cost	Low	Medium	High

For most of Canada’s climate zones, butyl-based flashing is the most reliable choice. It performs well in sub-zero temperatures and maintains adhesion even on slightly damp surfaces.

Selecting the Best Flashing Tape

For a beginner-safe installation, here is what to consider:

• Follow Manufacturer Instructions: Always start by reading the window manufacturer’s installation guide. Many warranties specify which flashing materials are approved for use with their products.
• Match the Tape to the Climate: Canadian homes experience wide temperature swings. Butyl tapes maintain flexibility in winter and resist peeling in heat, while bitumen may crack or lose grip in the cold.
• Confirm Compatibility: Ensure your flashing tape bonds well to your chosen WRB or house wrap. Manufacturers often provide compatibility charts to help avoid adhesion issues.
• Invest in Quality: Flashing tape represents only a small fraction of your total window cost. Cutting corners here can lead to leaks costing thousands of dollars in future repairs. Choose a reputable brand with proven long-term performance.

Common Mistakes to Avoid

Proper installation is about sequence and attention to detail. These are the mistakes that lead to most window failures:

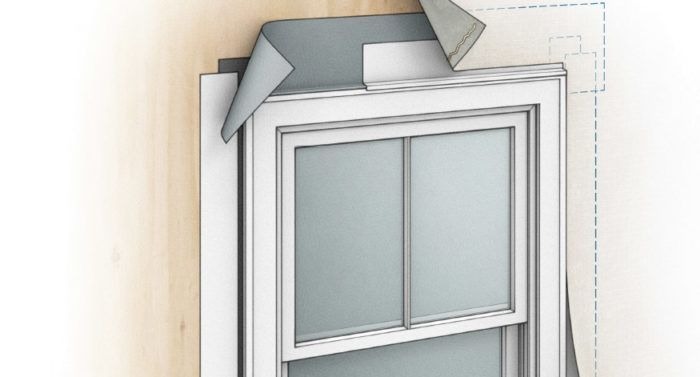

1. Reversed Lapping: The biggest error is applying flashing in the wrong order. Always use a “shingle-style” pattern: bottom first, sides next, and top last. This ensures water always drains over, not under, the next layer.
2. Missing or Flat Sill Pan: Before placing the window, build a sloped sill pan using pre-formed plastic or layered flashing tape. This pan catches stray water and directs it outward. Without it, trapped moisture can damage the framing below the window. Many sill pan systems also include small weep holes that allow hidden moisture to drain safely from behind the flange.

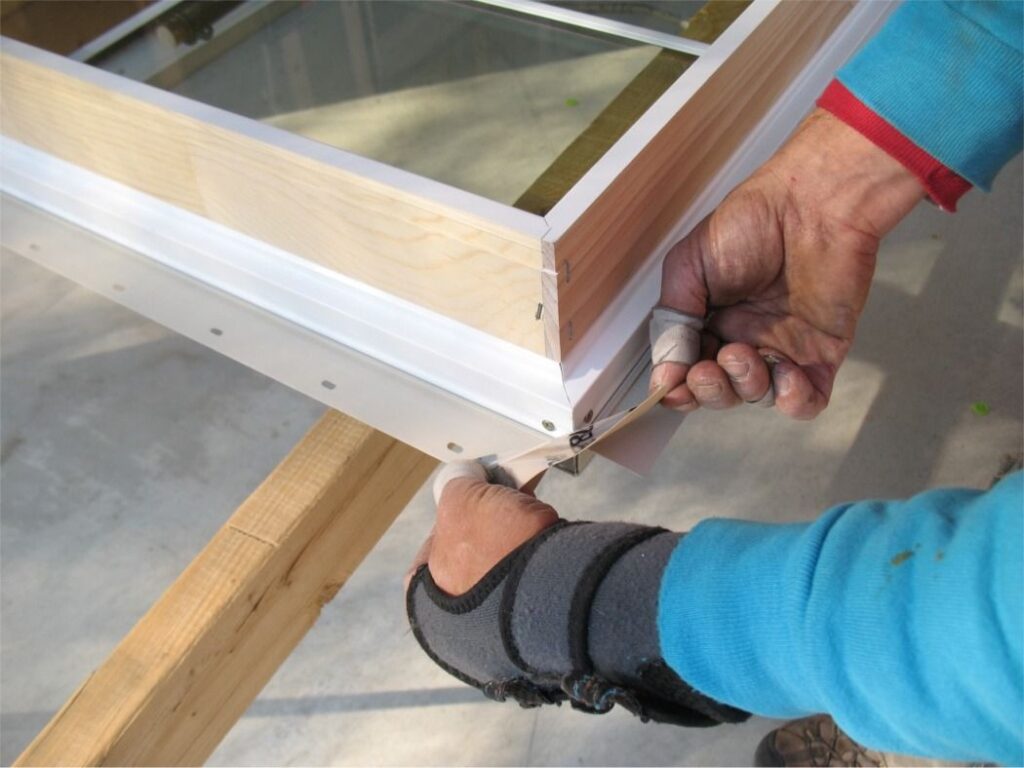

3. Poor Adhesion: Flashing tapes are pressure-sensitive. Always use a small hard roller to press the tape firmly into the surface. Hand pressure alone is not enough to create a lasting bond.
4. Over-Stretching the Tape: Do not stretch flashing tape around corners. Stretching thins the adhesive and weakens the seal. Instead, cut relief slits or use corner patches to maintain full thickness.
5. Dirty or Wet Surfaces: Dust, sawdust, or moisture on the sheathing can prevent adhesion. Clean and dry the area before applying tape for best results.

The Sill Debate: To Tape or Not to Tape the Bottom Flange?

There is ongoing discussion among professionals about whether to tape over the bottom flange.

• Traditional Approach: Some installers leave the bottom flange untaped so that any water that enters can drain freely over the sill pan and out of the wall.
• Modern Approach: Others tape all four sides, arguing that if a properly sloped sill pan is in place, full taping creates a tighter air seal without trapping water.

For beginner installers, the safest practice is to build a watertight, sloped sill pan first and then follow the specific instructions provided by your window manufacturer. This ensures both warranty coverage and long-term performance.

Frequently Asked Questions (FAQ)

1. What should I consider when installing new-construction windows?

The most critical aspects are ensuring the rough opening is square and level, creating a waterproof sill pan before setting the window, and applying the flashing tape in the correct “shingle-lap” order (bottom, sides, top) to direct water away.

2. How do I choose the best flashing tape?

Choose a tape that is compatible with your window and house wrap. For Canadian climates, a butyl-based tape is generally a more reliable choice than a standard bitumen/asphalt tape due to its superior performance in cold weather.

3. What are the advantages and disadvantages of flange windows?

• Advantages: The flange makes the window much easier to install, level, and square in the opening.⁵ It provides a wide, flat surface that is ideal for integrating with flashing and house wrap, creating a robust air and water seal.
• Disadvantages: They can only be used in new construction or “full-frame” replacement projects where the home’s exterior siding is removed. They cannot be used for a simpler “insert” or “retrofit” window replacement.

Conclusion

A successful window installation depends on more than just the product – it depends on the invisible details behind the siding. New-construction flanges and flashing form the protective seal that keeps your home dry, efficient, and structurally sound.

By following correct “shingle-style” layering, choosing quality materials, and working carefully, even first-time installers can achieve professional-level results. If there is any uncertainty about materials or technique, consulting an experienced installer is the best investment you can make in protecting your new windows and the home around them.
